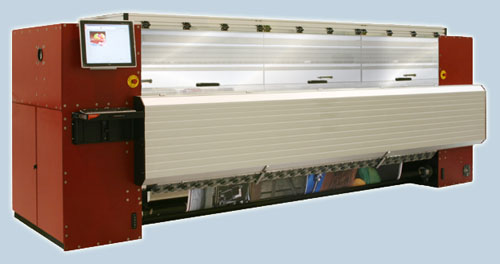

The World's First Grand Format Inkjet Printer
with Continuous Print Modes
- Solvent based and aqueous ink.
- Prints on a widest range of media: from paper to stretchy fabric to heavy-weight media for truck sides.
- Resolutions from 300 to 600 dpi
- Print speeds up to 2000 sq.ft/hour (190 sqm/hour) at 3-pass mode.
- Print widths: 3.2m ( 10.5') and 5m (16.4').
- Precision media feeding system.
- Automatic print heads maintenance.
- High-efficiency, powerful heaters.
- Changeable 3", 6" and 12" air shafts and mechanical shafts.
- Remote control via network or the Internet.
- Abundant software features.
- Fully enclosed design with a direct hookup to a ventilation system.
- Rugged design with oversized premium-quality parts for extra reliability. Continuous print modes improve the reliability of the machine.
- Matrix is ideal for dye sublimation printing, dirctly to fabric or using a transfer paper.
|
|
| |
|
| |
Matrix-364 |
Matrix-364UV |
Matrix-564 |
Ink type |
Solvent based pigmented ink
Solvent based dye sublimation ink
Water based dye sublimation ink
|
UV curable ink, flexible |
Solvent based pigmented ink
Solvent based dye sublimation ink
Water based dye sublimation ink |
Print width |
3.20 m |
3.20 m |
5.00 m |
Max print speed |
190 sq.m per hour / 2000 sq.ft per hour |
190 sq.m per hour / 2000 sq.ft per hour |
200 sq.m per hour / 2100 sq.ft per hour |
Resolutions |
300, 360, 375 and 600 dpi |
300, 360, 375 and 600 dpi |
300, 360, 375 and 600 dpi |
Media types |
PVC banner, mesh, SAV
Paper
Polyester fabric
|
Virtually any rolled material |
PVC banner, mesh, SAV
Paper
Polyester fabric |
Max. media thickness |
4 mm |
4 mm |
4 mm |
Media core diameter |
3" and 6" |
3" and 6" |
3", 6" and 12" |
Max roll weight |
225 kg / 500 lbs |
225 kg / 500 lbs |
290 kg / 650 lbs |
RIP |
Caldera GrandRIP+ |
Caldera GrandRIP+ |
Caldera GrandRIP+ |
For more information, please contact us.
|
